Product Summary

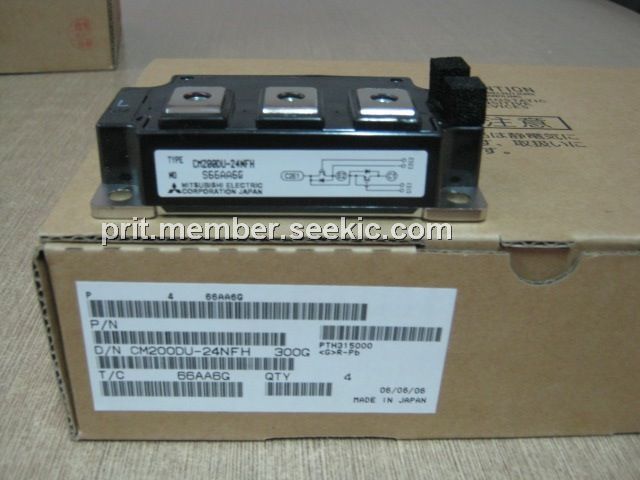

The CM200DU-24NFH is a Powerex IGBTMOD Module. It is designed for use in high frequency applications; 30kHz for hard switching applications and 60 to 70 kHz for soft switching applications.

Parametrics

CM200DU-24NFH absolute maximum ratings: (1)Junction Temperature:–40℃ to 150℃; (2)Storage Temperature:–40℃ to 125℃; (3)Collector-Emitter Voltage (G-E Short):1200Volts; (4)Gate-Emitter Voltage (C-E Short):±20Volts; (5)Collector Current (TC=25℃):200Amperes; (6)Peak Collector Current:400Amperes; (7)Emitter Current(TC=25℃):200Amperes; (8)Peak Emitter Current:400Amperes; (9)Maximum Collector Dissipation (TC = 25℃, Tj≤ 150℃):830Watts; (10)Maximum Collector Dissipation (TC= 25℃, Tj ≤ 150℃):1300Watts; (11)Mounting Torque, M6 Main Terminal:40in-lb; (12)Mounting Torque, M6 Mounting:40in-lb; (13)Weight:400Grams; (14)Isolation Voltage (Main Terminal to Baseplate, AC 1 min.):2500Volts.

Features

CM200DU-24NFH features: (1)Low ESW(off); (2)Discrete Super-Fast Recovery Free-Wheel Diode; (3)Isolated Baseplate for Easy Heat Sinking.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM200DU-24NFH
CM200DU-24NFH

IGBT MOD DUAL 1200V 200A NFH SER
Data Sheet
0-1: $92.29
