Product Summary

The FM24CL64B-GTR is a 64-kilobit nonvolatile memory employing an advanced ferroelectric process. The FM24CL64B-GTR provides reliable data retention for 45 years while eliminating the complexities, overhead, and system level reliability problems caused by EEPROM and other nonvolatile memories.

Parametrics

FM24CL64B-GTR absolute maximum ratings: (1)Power Supply Voltage with respect to VSS:-1.0V to +5.0V ; (2)Voltage on any pin with respect to VSS:-1.0V to +5.0V and VIN < VDD+1.0V; (3)Storage Temperature:-55℃ to +125℃ ; (4)Lead Temperature (Soldering, 10 seconds):300℃; (5)Electrostatic Discharge Voltage:Human Body Model(JEDEC Std JESD22-A114-B):4kV,Machine Model(JEDEC Std JESD22-A115-A):300V.

Features

FM24CL64B-GTR features: (1)Organized as 8,192 x 8 bits ; (2)Unlimited Read/Write Cycles ; (3)45 year Data Retention ; (4)NoDelay Writes ; (5)Advanced High-Reliability Ferroelectric Process ; (6)Up to 1 MHz maximum bus frequency ; (7)Direct hardware replacement for EEPROM ; (8)Supports legacy timing for 100 kHz & 400 kHz ; (9)True 2.7V-3.6V Operation ; (10)75 μA Active Current (100 kHz) ; (11)1 μA Standby Current.

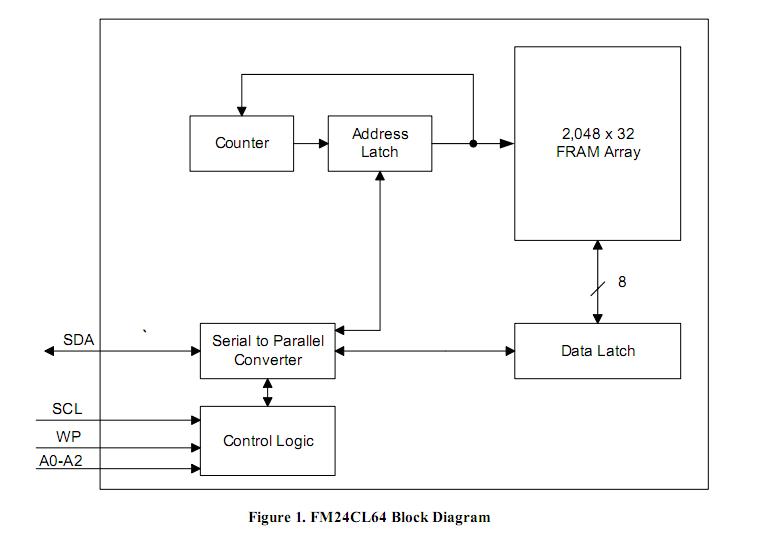

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

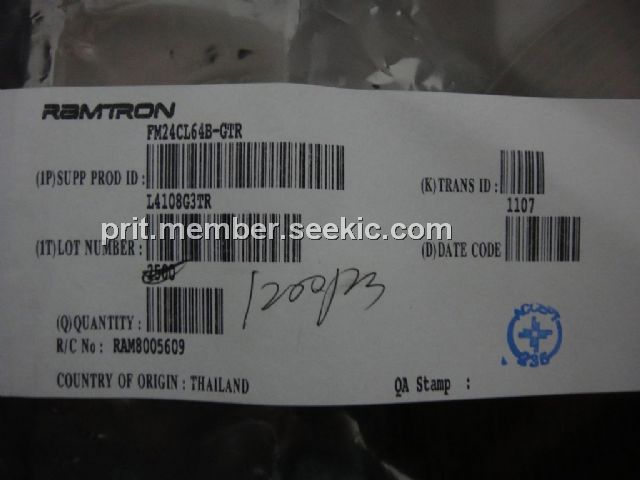

FM24CL64B-GTR
FM24CL64B-GTR
Ramtron
F-RAM 64Kb Serial I2C 3V FRAM
Data Sheet
0-2500: $1.04
