Product Summary
The FM24CL64-GTR is a 64-kilobit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or FRAM is nonvolatile and performs reads and writes like a RAM.
Parametrics
Absolute maximum ratings: (1)Power Supply Voltage with respect to VSS: -1.0V to +5.0V; (2)Voltage on any pin with respect to VSS: -1.0V to +5.0V and VIN < VDD+1.0V *; (3)Storage Temperature: -55℃ to +125℃; (4)Lead Temperature (Soldering, 10 seconds): 300℃; (5)Package Moisture Sensitivity Level: MSL-1.
Features
Features: (1)64K bit Ferroelectric Nonvolatile RAM: Organized as 8,192 x 8 bits, Unlimited Read/Write Cycles, 45 year Data Retention, NoDelay Writes, Advanced High-Reliability Ferroelectric Process; (2)Fast Two-wire Serial Interface: Up to 1 MHz maximum bus frequency, Direct hardware replacement for EEPROM, Supports legacy timing for 100 kHz & 400 kHz; (3)Low Power Operation: True 2.7V-3.6V Operation, 75 μA Active Current (100 kHz), 1 μA Standby Current.

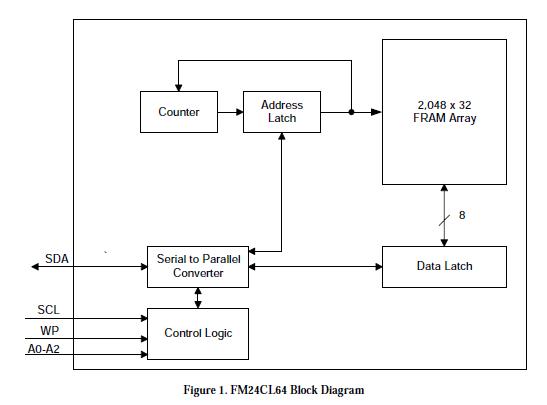

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FM24CL64-GTR |
Ramtron |
F-RAM 64K (8Kx8) 2.7V |
Data Sheet |
Negotiable |
|
||||||||||||
