Product Summary

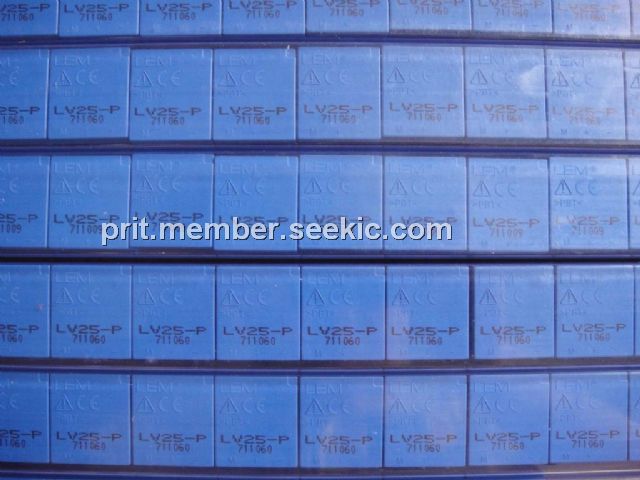

The LV25-P is a Voltage Transducer. It is designed for the electronic measurement of voltages.
Parametrics
Absolute maximum ratings: (1)IPN, Primary nominal r.m.s. current: 10mA; (2)IP, Primary current, measuring range: 0 to ± 14mA; (3)ISN, Secondary nominal r.m.s. current: 25 mA; (4)KN, Conversion ratio: 2500 : 1000; (5)VC, Supply voltage (± 5 %) :± 12 to 15 V; (6)IC, Current consumption: 10 (@± 15 V)+ IS mA; (7)Vd, R.m.s. voltage for AC isolation test 1), 50 Hz, 1 mn: 2.5 kV.
Features
Features: (1)Closed loop (compensated) voltage transducer using the Hall effect; (2)Insulated plastic case recognized according to UL 94-V0.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 LV25-P |
Other |
|
Data Sheet |
Negotiable |
|
||||||||
