Product Summary

The ADF7020BCPZ is a High Performance ISM Band FSK/ASK Transceiver IC.

Parametrics

Absolute maximum ratings: (1)VDD to GND: -0.3 V to +5 V; (2)Analog I/O Voltage to GND: -0.3 V to AVDD + 0.3 V; (3)Digital I/O Voltage to GND: -0.3 V to DVDD + 0.3 V; (4)Operating Temperature Range Industrial (B Version): -40℃ to +85℃; (5)Storage Temperature Range: -65℃ to +125℃; (6)Maximum Junction Temperature: 125℃; (7)MLF θJA Thermal Impedance: TBD℃/W; (8)Lead Temperature Soldering Vapor Phase (60 s): 235℃, Infrared (15 s): 240℃.

Features

Features: (1)Low power, low IF transceiver; (2)Frequency bands: 433 MHz to 464 MHz, 862 MHz to 928 MHz; (3)Data rates supported: 0.3 kbps to 200 kbps, FSK, 0.3 kbps to 64 kbps, ASK, 2.3 V to 3.6 V power supply; (4)Programmable output power: 16 dBm to +13 dBm in 0.3 dBm steps; (5)Receiver sensitivity: 117.5 dBm at 1 kbps, FSK, 110.5 dBm at 9.6 kbps, FSK, 106.5 dBm at 9.6 kbps, ASK; (6)Low power consumption: 19 mA in receive mode, 22 mA in transmit mode (10 dBm output).

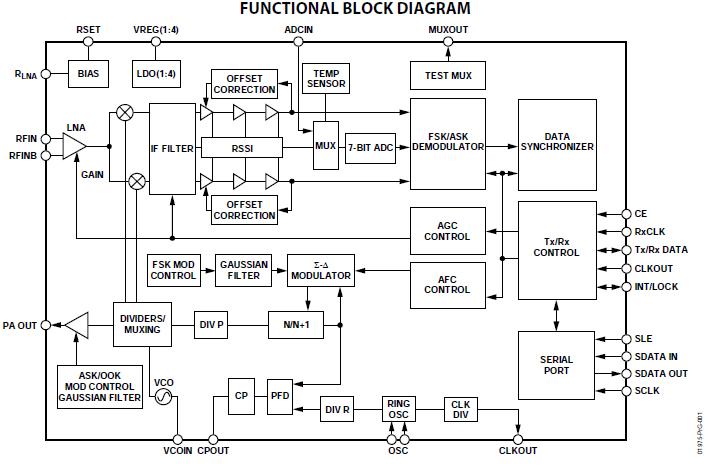

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
ADF7020BCPZ
ADF7020BCPZ

IC TX FSK/ASK ISM BAND 48LFCSP
Data Sheet
0-1: $3.37
1-10: $3.01
10-100: $2.47
100-250: $2.23
250-500: $2.00
500-1000: $1.69
1000-2500: $1.61
ADF7020BCPZ-RL
ADF7020BCPZ-RL

IC TX FSK/ASK ISM BAND 48LFCSP
Data Sheet
0-2500: $1.61
ADF7020BCPZ-RL7
ADF7020BCPZ-RL7
Analog Devices Inc
IC TX FSK/ASK ISM BAND 48LFCSP
Data Sheet
1-750: $1.81
