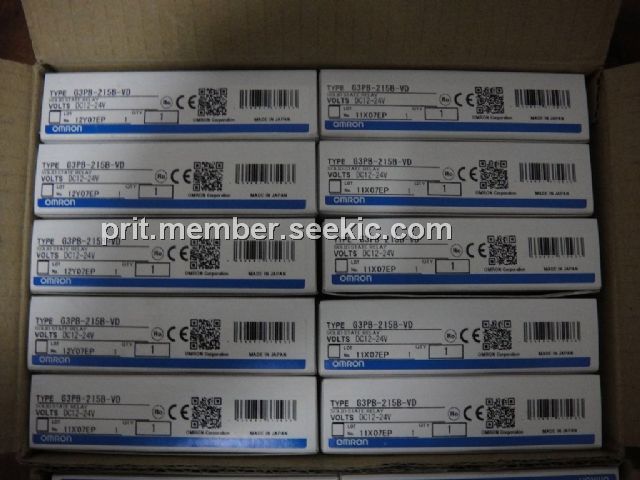

G3PB-215B-VD

Product Summary

The G3PB-215B-VD is a Solid State Relay for heater control.

Parametrics

G3PB-215B-VD absolute maximum ratings: (1)Operating Rated Voltage:12 to 24 VDC ; (2)Operating Voltage Range:9.6 to 30 VDC ; (3)Input Impedance:7 mA Max.(at 25 CEL) ; (4)Must Operate Voltage:9.6 VDC Max. ; (5)Must Release Voltage:1 VDC Min. ; (6)Isolation:Phototriac ; (7)Output Form:SPST-NO ; (8)Rated load voltage:100 to 240 VAC (50/60Hz) ; (9)Load Voltage Range:75 to 264 VAC (50/60Hz) ; (10)Load Current:AC: 0.1 A to 15 A (at 40 CEL) ; (11)Inrush Current Resistivity:AC: 150 A (60Hz 1 cycle) ; (12)Output ON voltage drop:1.6V(RMS) Max. ; (13)Leakage current:10mA Max. (at 200VAC) ; (14)Ambient temperature Operating: -30℃ to 80℃; (15)Storage: -30℃ to 100℃(with no icing or condensation) ; (16)Ambient humidity Operating: 45% RH to 85% RH(with no icing or condensation)

Features

G3PB-215B-VD features:(1)Operate time:1/2 cycle of load power source + 1ms Max. ; (2)Release time:1/2 cycle of load power source + 1ms Max. ; (3)Protection for output:Varisitor and Snubber ; (4)Zero cross function:Provided ; (5)Indicator:Input indicator(INPUT:Yellow:Operating) ; (6)Insulation resistance:Between INPUT to LOAD: 100 M Ohm Min. (at 500 VDC),Between Heat Sink to INPUT/OUTPUT Terminals: 100 M Ohm Min. (at 500 VDC) ; (7)Dielectric strength:Between INPUT to LOAD: 2500 VAC 50/60 Hz for 1 min,Between Heat Sink to INPUT/OUTPUT Terminals: 2500 VAC 50/60 Hz for 1 min ; (8)Vibration resistance:10 to 55 to 10Hz 0.375mm single amplitude(0.75mm double amplitude)XYZ directions for 2hrs each (Mounted on DIN Track) ; (9)Shock resistance:294m/s2 each XYZX’Y’Z’ directions for 3 times ; (10)Applicable standard (UL):Standard No.: UL508, File number: NO.E64562 ; (11)Applicable standard (CSA):Standard No.: C22.2 NO.14,File number: No.LR35535 ; (12)Applicable standard (VDE):Standard No.: EN60947-4-3,File number: NO.6825 ; (13)Terminal structure:screw ; (14)Terminal strength (Clamp torque):Input terminal: Recomendable fasten torque M3.5: 0.75 to 1.18N.m, Output terminal: Recomendable fasten torque M4: 0.98 to 1.47N.m ; (15)Mounting:panel(DIN track) ; (16)Weight Approx.:240 g.

Diagrams
