Product Summary

The LA200-P is a Current Transducer. It is suitable for AC variable speed drives and servo motor drives, Static converters for DC motor drives, Battery supplied applications, Uninterruptible Power Supplies (UPS), Switched Mode Power Supplies (SMPS) and Power supplies for welding applications.

Parametrics

Absolute maximum ratings: (1)PN, Primary nominal r.m.s. current: 200 A; (2)I P, Primary current, measuring range: 0 to ± 300 A; (3) ISN, Secondary nominal r.m.s. current: 100 mA; (4)KN, Conversion ratio: 1 : 2000; (5)VC, Supply voltage (± 5 %): ± 12 to 15 V; (6)I C, Current consumption: 16(@±15 V) +IS mA; (7)Vd, R.m.s. voltage for AC isolation test, 50 Hz, 1 mn: 3 kV.

Features

Features: (1)Closed loop (compensated) current transducer using the Hall effect; (2)Printed circuit board mounting; (3)Insulated plastic case recognized according to UL 94-V0.

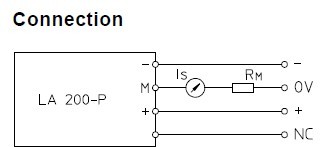

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LA200-P
LA200-P

SENSOR CURRENT 200A TH
Data Sheet
0-1: $42.84
1-5: $40.70
5-10: $37.49
10-25: $33.20
25-50: $32.13
50-100: $31.06
100-250: $29.99
250-500: $29.45
500-1000: $27.31
