Product Summary

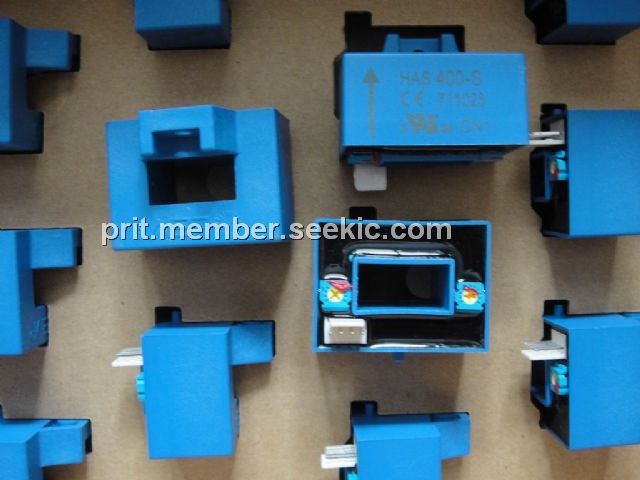

The HAS400-S is a Current Transducer. It is suitable for AC variable speed drives, Static converters for DC motor drives, Battery supplied applications, Uninterruptible Power Supplies (UPS), Switched Mode Power Supplies (SMPS) and Power supplies for welding applications.
Parametrics
Absolute maximum ratings: (1)VC, Supply voltage (± 5%): ± 15 V; (2)IC, Current consumption: ± 15 mA; (3)IOC, Overload capacity: 30,000 At; (4)Vd, R.m.s. voltage for AC isolation test, 50/60 Hz, 1 mn: 3 kV; (5)Vb, R.m.s. rated voltage, safe separation: 500 V; (6)RIS, Isolation resistance @ 500 VDC: > 1000 MW; (7)VOUT, Output voltage @ ± IPN, RL = 10 kW, TA = 25℃: ± 4V ± 40 mV; (8)ROUT, Output internal resistance: approx. 100 W; (9)RL Load resistance: > 1 kW.
Features
Features: (1)Hall effect measuring principle; (2)Galvanic isolation between primary and secondary circuit; (3)Isolation voltage 3000 V~; (4)Low power consumption; (5)Extended measuring range (3 x IPN); (6)Insulated plastic case made of polycarbonate PBT recognized according to UL 94-V0.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 HAS400-S |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
HAS400-S/SP50 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
HAS400-S4V/400A |
Other |
|
Data Sheet |
Negotiable |
|
||||
