Product Summary

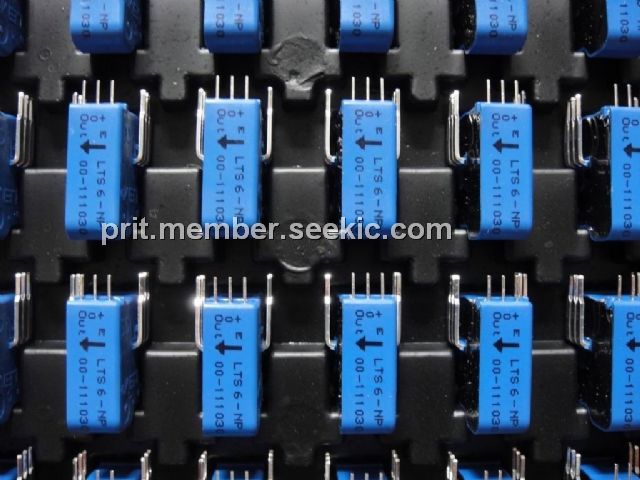

The LTS6-NP is a Current Transducer. It is suitable for AC variable speed drives and servo motor drives, Static converters for DC motor drives, Battery supplied applications, Uninterruptible Power Supplies (UPS), Switched Mode Power Supplies (SMPS) and Power supplies for welding applications.
Parametrics
Absolute maximum ratings: (1)IPN, Primary nominal r.m.s. current: 6At; (2)IP, Primary current, measuring range: 0 to ±19.2At; (3)NS, Number of secondary turns (±0.1 %): 2000; (4)RL, Load resistance: ≥2 kW; (5)RIM, Internal measuring resistance (±0.5 %): 208.33W; (6)TCRIM, Thermal drift of RIM: < 50ppm/K; (7)VC, Supply voltage (±5 %): 5V.
Features
Features: (1)Closed loop (compensated) multirange current transducer using the Hall effect; (2)Unipolar voltage supply; (3)Compact design for PCB mounting; (4)Insulated plastic case recognized according to UL 94-V0; (5)Incorporated measuring resistance; (6)Extended measuring range.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LTS6-NP |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
LTS6-NP |
Other |
|
Data Sheet |
Negotiable |
|
||||
